uPVC WINDOWS & DOORS
Durable, energy-efficient Wintech profiles — 222, 232, 632, and 750 series for residential and commercial projects across Pakistan.

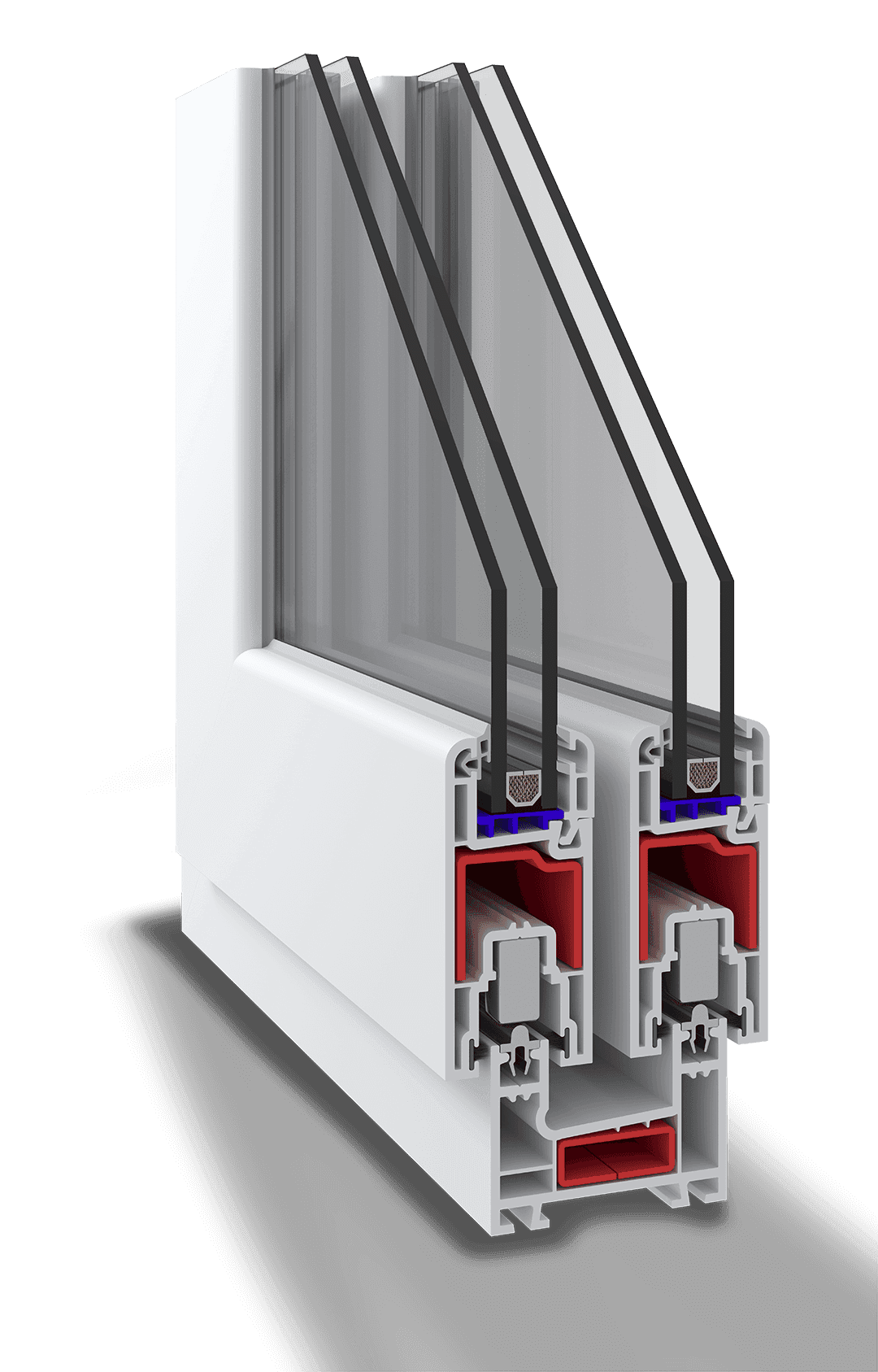

W 222 Rail Series
Rail sliding PVC profile system for residential and light commercial sliding windows and doors. Three-chamber construction with installed bristle wick sealing and B-class certification.
- Profile width
- 63 mm double rail frame; 111 mm triple rail frame; 38 mm sliding system sash profile
- Number of chambers
- 3
- Profile class
- B Class (TS EN 12608-1)
- Seal type
- Installed bristle wick system
- Glass thickness (mm)
- 4–6, 15, 17 mm
Profile cross-section

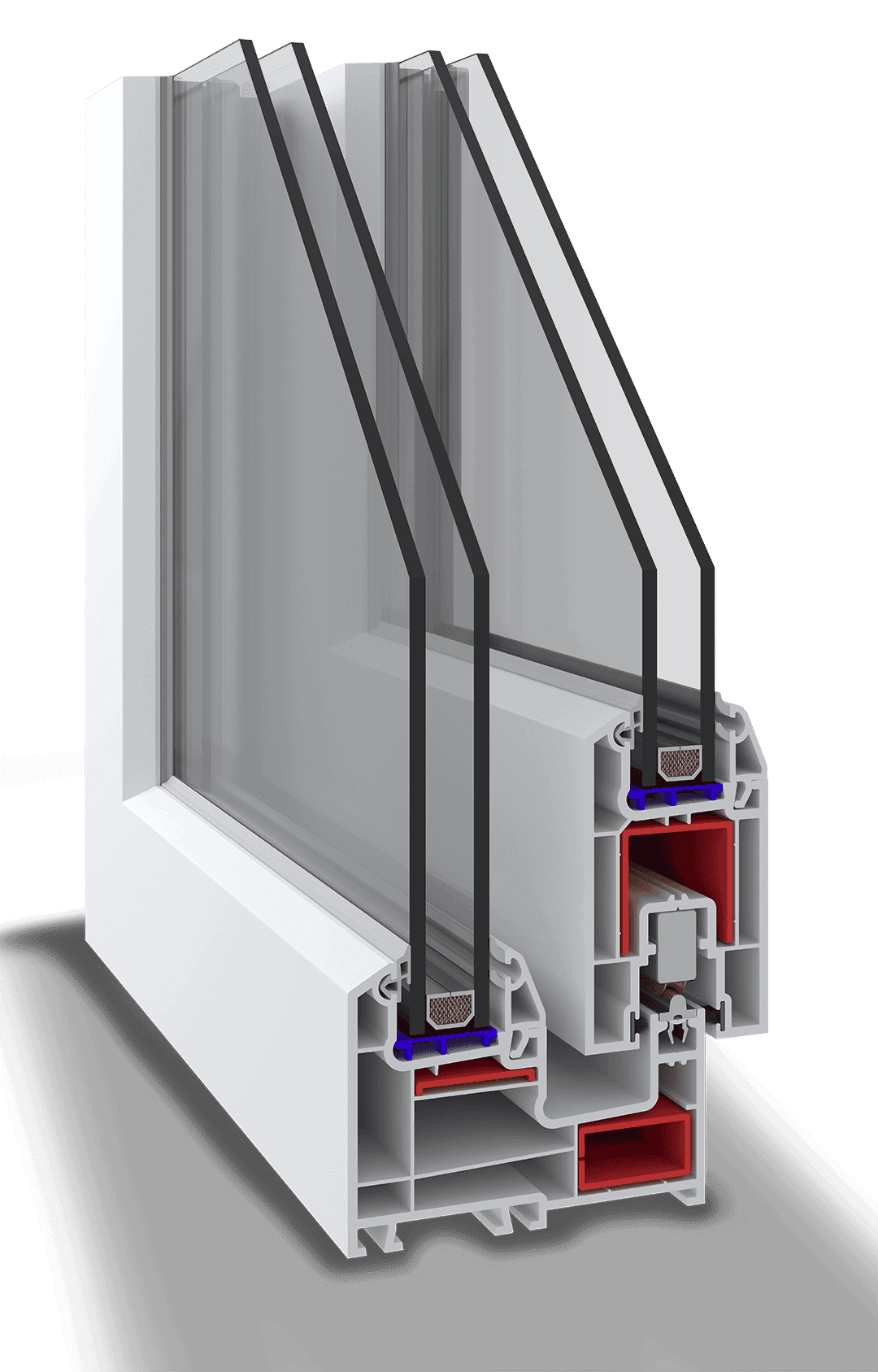

W 232 Double and Single
Versatile rail sliding series with double- and single-rail frame options. Insulated bristle wick sealing and TPE gaskets in grey or black for reliable weather performance.
- Profile width
- 75 mm double rail frame; 92.5 mm single rail frame; 50 mm sliding system sash profile
- Number of chambers
- 3
- Profile class
- B Class (TS EN 12608-1)
- Seal type
- Insulated bristle wick system
- Seal type and color
- TPE — Grey / Black
- Glass thickness (mm)
- 4–6, 20, 24 mm
Profile cross-section

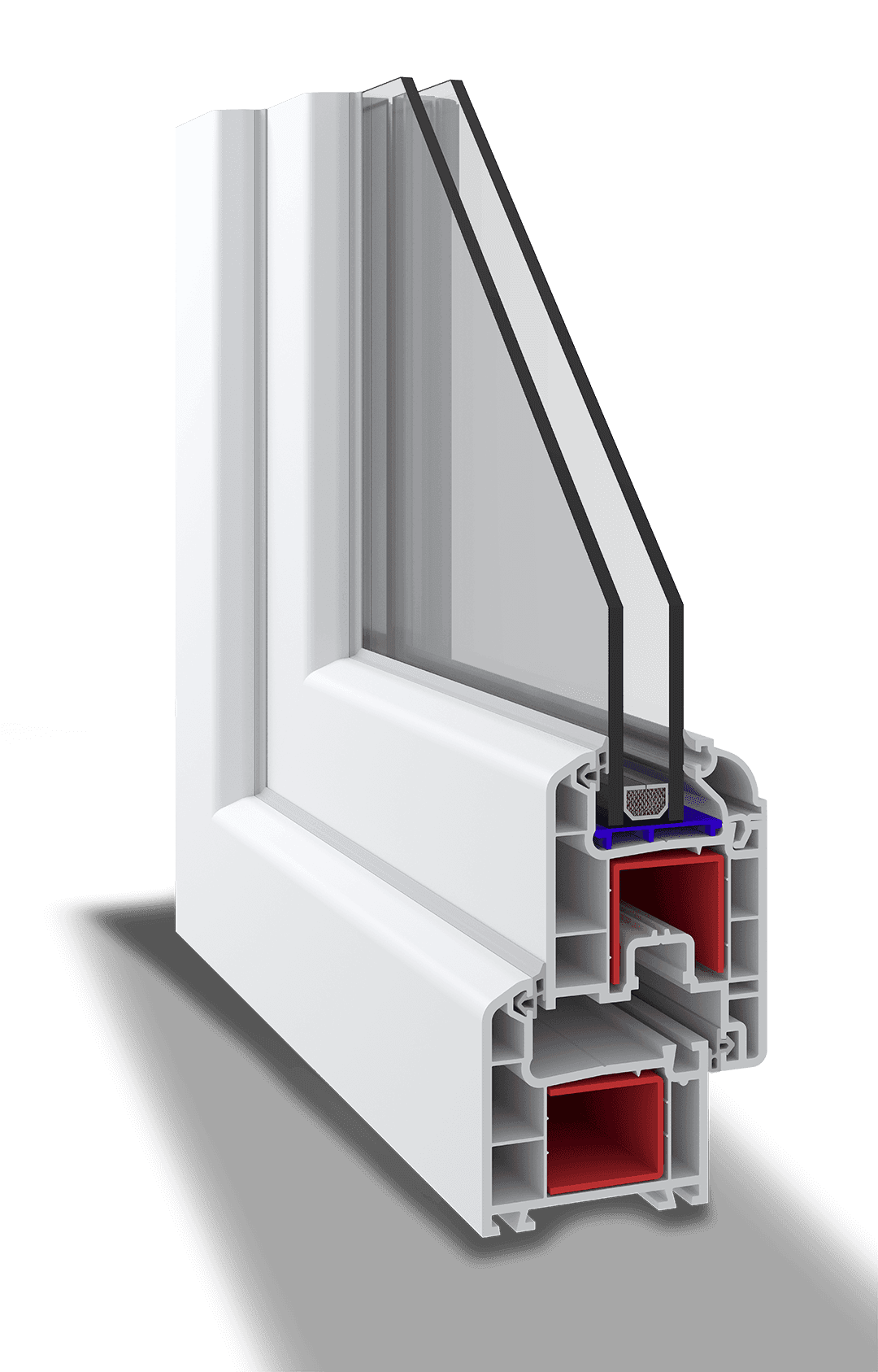

W 632 / W 630 Series
Compact 60 mm profile system with external and internal double sealing. W 632 (B class) and W 630 (C class) options for cost-effective casement and tilt-and-turn applications.
- Profile width
- 60 mm
- Number of chambers
- 3
- Profile class
- W 632 B Class / W 630 C Class (TS EN 12608-1)
- Seal type
- External / Internal double seal system
- Seal type and color
- TPE — Grey / Black
- Glass thickness (mm)
- 4, 20, 24, 30, 32 mm
- Thermal insulation
- 1.58 W/m²K
Profile cross-section

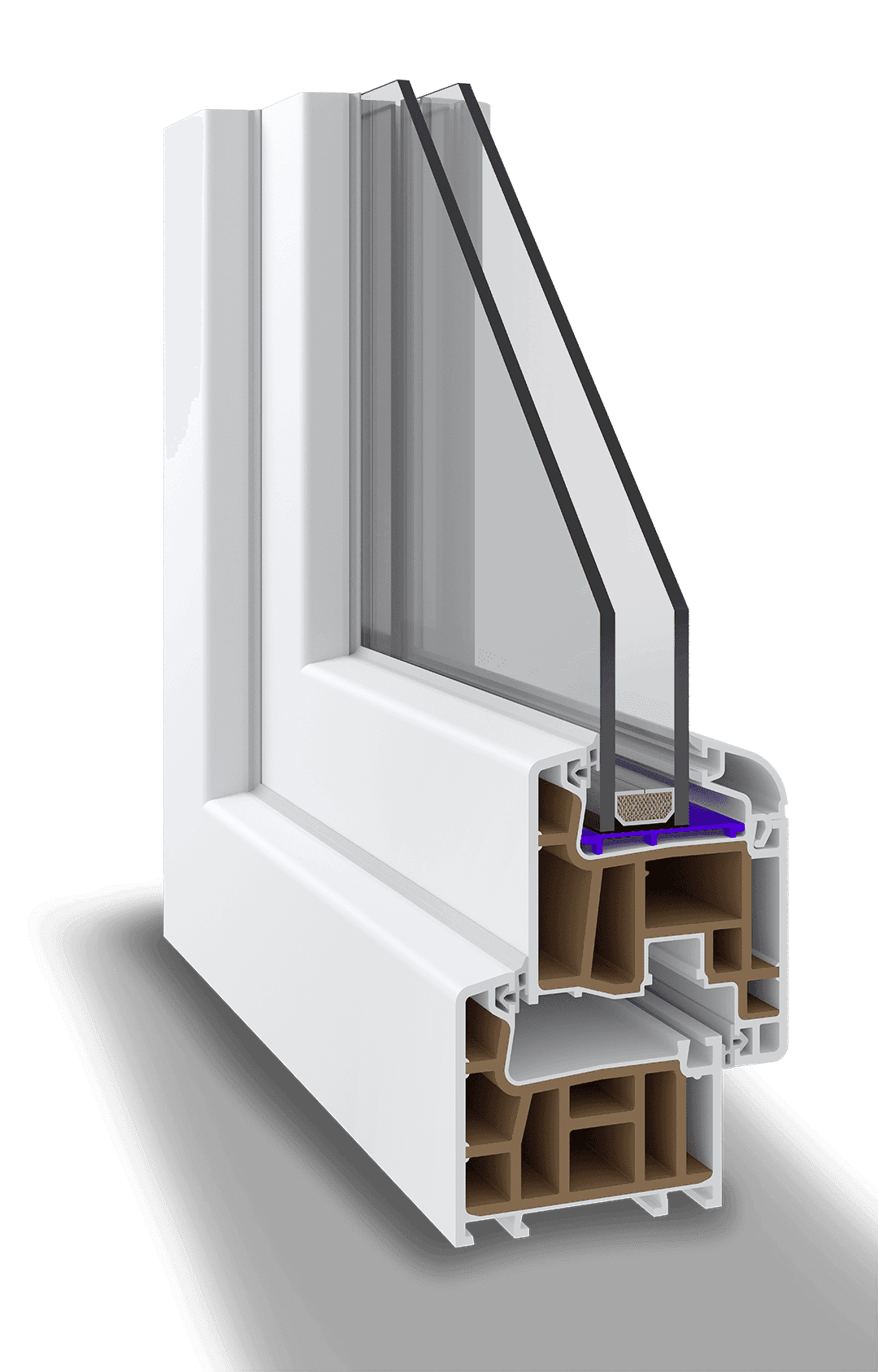

Penwood 750
Premium five-chamber 70 mm profile for high thermal performance. Ideal for energy-conscious homes and commercial façades requiring superior U-values and wide glazing options.
- Profile width
- 70 mm
- Number of chambers
- 5
- Profile class
- B Class (TS EN 12608-1)
- Seal type
- External / Internal double seal system
- Seal type and color
- TPE — Grey / Black
- Glass thickness (mm)
- 4, 20, 24, 28, 32, 40, 42 mm
- Thermal insulation
- Uf: 1.1 W/m²K · Uw: 0.89 W/m²K
Profile cross-section
AVAILABLE COLORS
Wintech profiles are available in black, grey, white, and brown finishes. Seal gaskets are supplied in TPE grey or black to match your specification.
Black
Grey
White
Brown
Contact N-SETS for samples and project-specific matching.
Interested in Wintech uPVC profiles? N-SETS is the authorized dealer in Pakistan — we can help with selection, supply, and installation.
